Korg MonoPoly

• Description of the VCO adjustment procedure.
• There is dedicated page for modifications
• Schematics (see below)
• Pictures from the inards of the MonoPoly
• Patchsheet for the Korg Monopoly (courtesy of http://www.synthesized-dreams.com)

Complete manual as archiv

• mp_00_title.gif
• mp_01_specification_page.gif

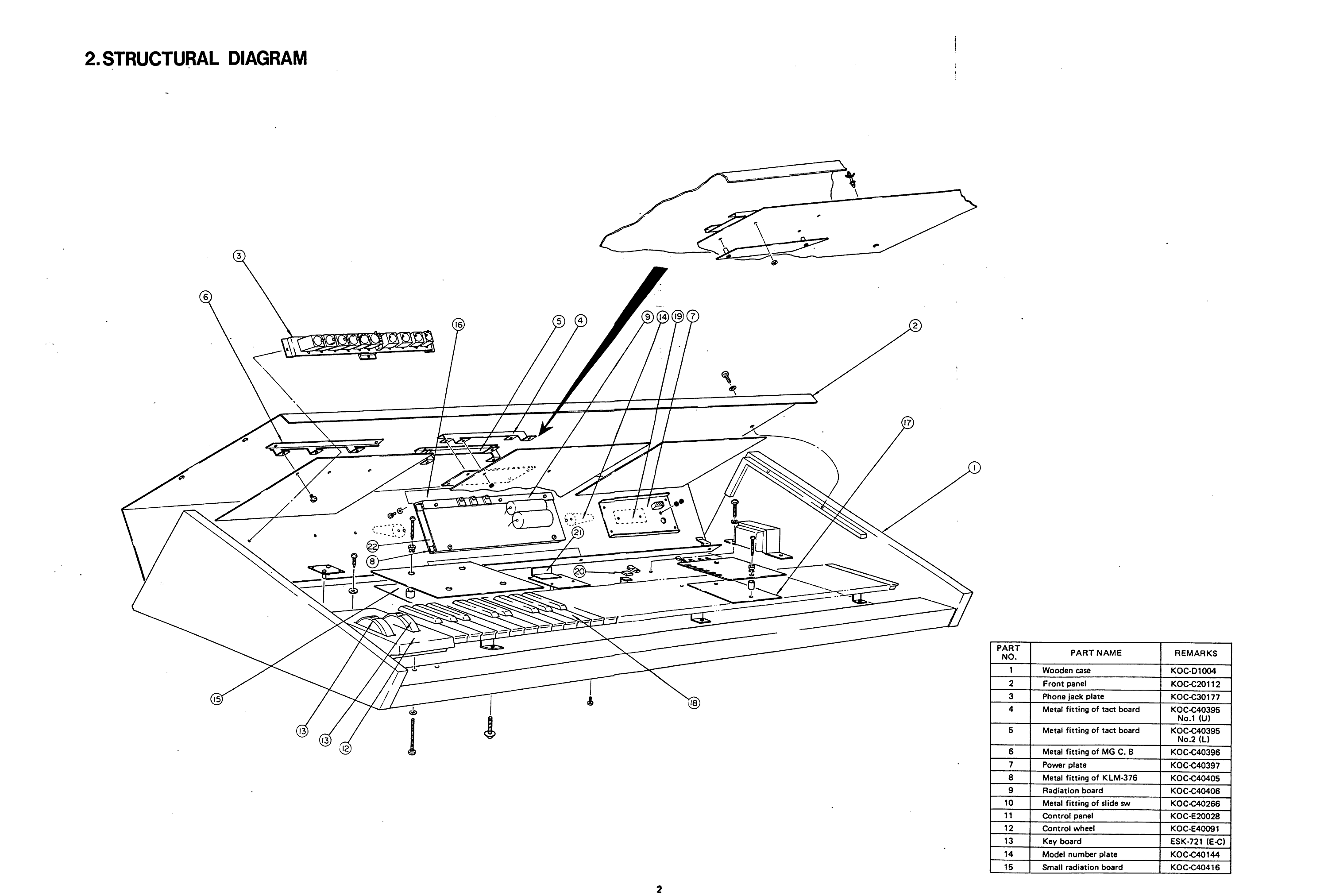

• mp_02_exploded_view.gif
• mp_03_blockdiagram_rough.gif
• mp_04_blockdiagram_detail.gif
• mp_05_klm_353_bender_headphone_lfo_schemo.gif
• mp_06_klm-354_vco_schemo.gif
• mp_07_klm-355-old_vcf_vca_env_noise_schemo.gif
• mp_08_klm-355-new_vcf_vca_env_noise_schemo.gif
• mp_09_klm-356_uP_ArpIn_schemo.gif
• mp_10_klm-376_powersupply_klm-357_vcoheater_schemo.gif

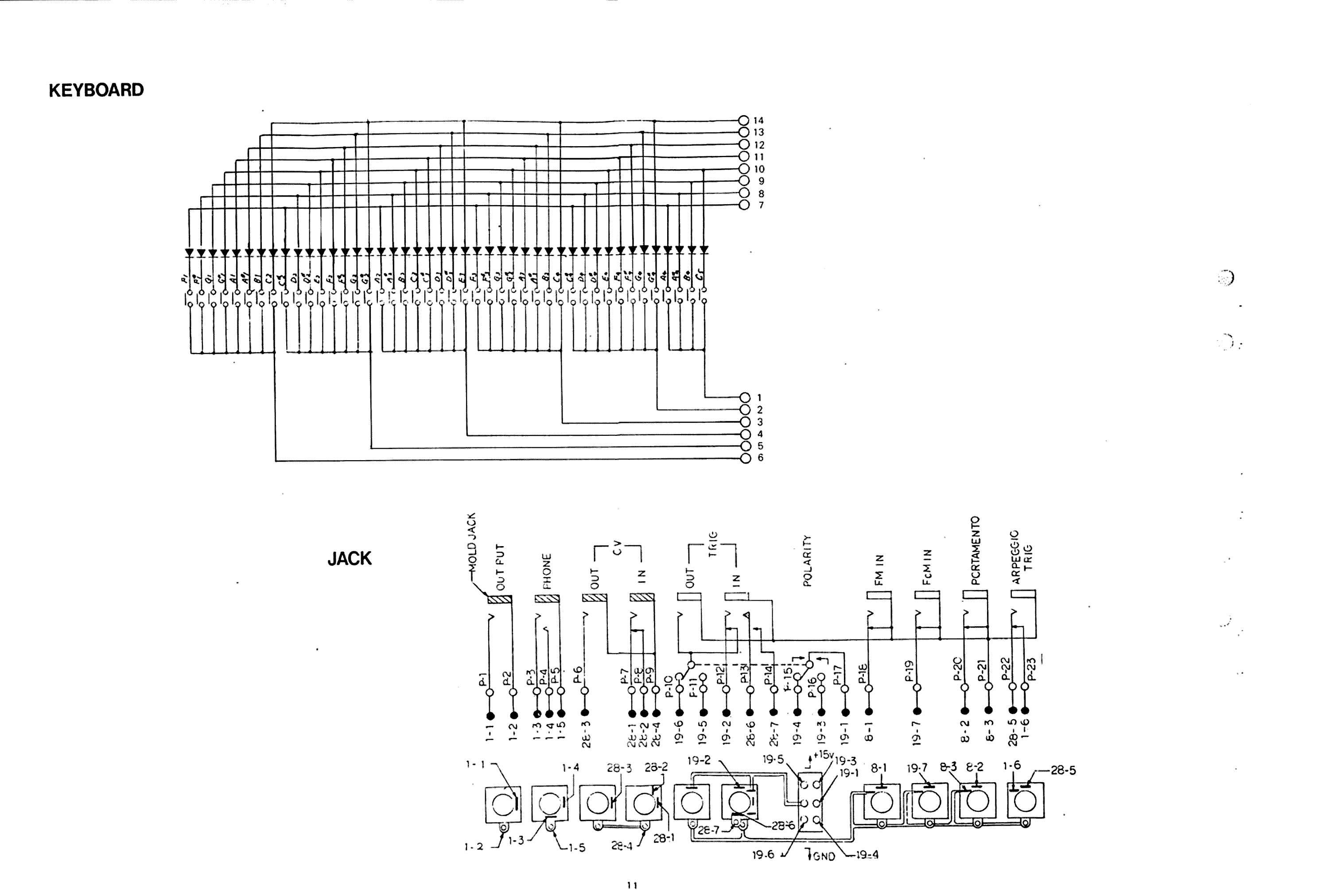

• mp_11_keyboard_jacks_schemo.gif
• mp_12_klm_327old_schemo.gif
• mp_13_klm_353_layout.gif
• mp_14_klm_355_layout.gif
• mp_15_klm_356_layout.gif
• mp_16_klm_354_layout.gif
• mp_17_klm_376_powersupply_layout.gif
• mp_18_connector_terminal_numbers.gif
• mp_19_trim_positions.gif
• mp_20_adjustment_1.gif
• mp_21_adjustment_2.gif
• mp_22_adjustment_3.gif
• mp_23_parts_list_1.gif
• mp_24_parts_list_2.gif

• The LFO bender PCB
• The VCF, VCA envelope PCB
• The VCO PCB
• Over view on a open Monopoly
